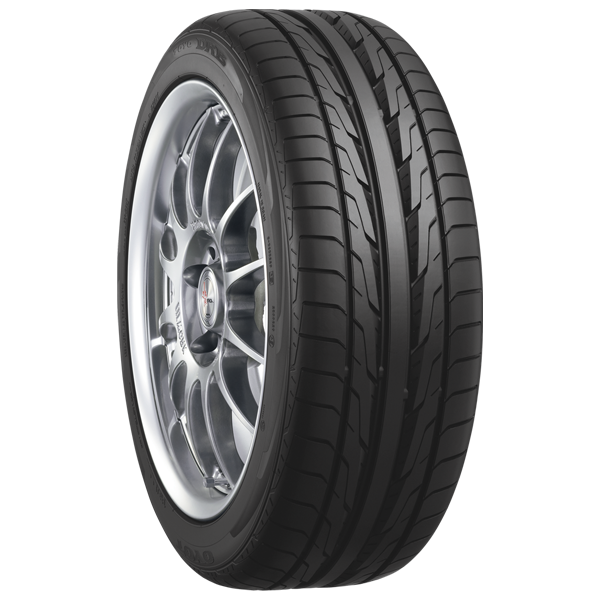

TOYO DRB is an ultra high performance tire for the new 'Balanced performance' segment.
Created to fill the niche between Proxes T1 Sport and proxes C1s, TOYO DRB offers a balance of sports and comfort performance suitable for smaller, less sports focused high performance vehicles.
|
Mediate rib block
|
|
Multi-taper face
|
|
Silent wall
|
|
Large block & narrow slit shoulder
|
| Tire Size | Load Speed Index | Tread Depth (mm) | Overall Diameter (mm) | Overall Width (mm) | Approved Rim Width Range (inch) |
||||
|---|---|---|---|---|---|---|---|---|---|
| 185/55 R15 | 82V | 7.3 | 583 | 190 | 5.00-6-6.50 | G | C |
|
70 dB |
| 195/55 R15 | 85V | 7.4 | 593 | 196 | 5.50-6-7.00 | F | C |
|
70 dB |
| 195/50 R15 | 82V | 7.4 | 575 | 196 | 5.50-6-7.00 | G | C |
|
70 dB |
| 205/50 R15 | 86V | 7.5 | 586 | 210 | 5.50-6.5-7.50 | G | C |
|
70 dB |
| 185/55 R16 | 83V | 7.3 | 607 | 189 | 5.00-6-6.50 | G | C |
|
70 dB |
| 195/50 R16 | 84V | 7.4 | 600 | 196 | 5.50-6-7.00 | G | C |
|
70 dB |
| 195/45 R16 | 80W | 7.4 | 580 | 191 | 6.00-6.5-7.50 | G | C |
|
70 dB |
| 205/55 R16 | 91V | 7.5 | 627 | 211 | 5.50-6.5-7.50 | F | C |
|
70 dB |
| 205/50 R16 | 87V | 7.5 | 609 | 209 | 5.50-6.5-7.50 | F | C |
|
70 dB |
| 205/50 R17 | 89V | 7.5 | 637 | 209 | 5.50-6.5-7.50 | F | C |
|
70 dB |
| 205/45 R17 | 84W | 7.5 | 618 | 204 | 6.50-7-7.50 | G | C |
|
70 dB |
| 205/40 R17 | 80W | 7.5 | 598 | 214 | 7.00-7.5-8.00 | G | B |
|
70 dB |
| 215/45 R17 | 87W | 7.6 | 626 | 208 | 7.00-7-8.00 | F | C |
|
70 dB |
| 215/45 R17 | 91W XL | 7.6 | 626 | 208 | 7.00-7-8.00 | F | C |
|
71 dB |
| 215/40 R17 | 83W | 7.6 | 602 | 216 | 7.00-7.5-8.50 | G | C |
|
70 dB |
| 225/45 R17 | 94W XL | 7.7 | 631 | 220 | 7.00-7.5-8.50 | F | C |
|
71 dB |
| 215/35 R18 | 84W XL | 7.6 | 608 | 216 | 7.00-7.5-8.50 | G | C |
|
71 dB |
| 225/40 R18 | 88W | 7.7 | 635 | 228 | 7.50-8-9.00 | F | C |
|
70 dB |
