H09

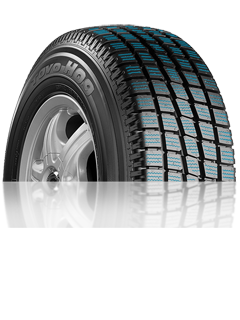

Toyo H09 is a new generation winter tire developed for high performing modern vans operating in a variety of winter conditions.



Designed for stability, Toyo H09 can overcome even deep snow covered roads while offering less noise and optimum ride comfort.

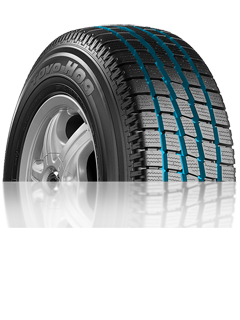

4 circumferential grooves
4 circumferential grooves
Higher lateral and longitudinal traction on wet and snowy surfaces

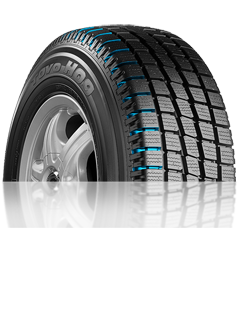

Wave siping
Wave siping
Higher edge effects and optimized ground contact on deep, snowy surfaces
Wide shoulder slits
Wide shoulder slits
Delivers excellent traction on snow

Specifications

Tire Size Rim Diameter Load Speed Index Tread Depth (mm) Overall Diameter (mm) Overall Width (mm) Approved Rim Width Range (inch)
165/70 R14C 14 89/87R 10.5 586 166 4.50-5-5.00 G E 72 dB
175/65 R14C 14 90/88T 10.5 585 175 5.00-5-5.50 G E 72 dB
175 R14C 14 99/98R 11.0 635 179 4.50-5-5.50 F E 72 dB
185/75 R14C 14 102/100R 11.0 634 183 5.00-5-6.00 F E 72 dB
185 R14C 14 102/100R 11.0 653 190 5.00-5.5-6.00 F E 72 dB
195/75 R14C 14 106/104R 11.0 653 188 5.00-5.5-6.00 F E 72 dB
195 R14C 14 106/104R 11.0 666 199 5.00-5.5-6.00 F E 72 dB
205 R14C 14 109/107R 11.5 686 211 5.50-6-6.50 F E 72 dB
215 R14C 14 112/110R 11.5 700 221 5.50-6-7.00 F E 72 dB
195/70 R15C 15 104/102R 10.5 653 198 5.00-6-6.00 F E 72 dB
205/70 R15C 15 106/104R 11.0 668 204 5.50-6-6.50 F E 72 dB
205/65 R15C 15 102/100T 10.5 652 204 5.50-6-6.50 F E 72 dB
215/70 R15C 15 109/107R 11.0 681 217 5.50-6.5-7.00 F E 72 dB
225/70 R15C 15 112/110R 11.0 696 227 6.00-6.5-7.00 F E 72 dB
175/75 R16C 16 101/99R 11.0 668 175 4.50-5-5.50 G E 72 dB
195/75 R16C 16 107/105R 11.0 697 195 5.00-5.5-6.00 F E 72 dB
195/65 R16C 16 104/102R 10.5 664 199 5.50-6-6.00 F E 72 dB
195/65 R16C 16 100/98T 10.5 665 198 5.50-6-6.00 G E 72 dB
195/60 R16C 16 99/97T 10.5 645 195 5.50-6-6.50 G E 72 dB
205/75 R16C 16 113/111Q 11.6 714 204 5.50-5.5-6.50 F E 72 dB
205/75 R16C 16 110/108R 11.5 714 206 5.50-5.5-6.50 F E 72 dB
205/65 R16C 16 107/105T 10.5 676 206 5.50-6-6.50 F E 72 dB
205/60 R16C 16 100/98T 10.5 652 204 6.00-6-6.50 G E 72 dB
215/75 R16C 16 116/114Q 11.6 728 215 5.50-6-7.00 F E 72 dB
215/75 R16C 16 113/111R 11.5 730 220 5.50-6-7.00 F E 72 dB
215/65 R16C 16 109/107R 10.5 691 219 6.00-6.5-7.00 F E 72 dB
215/65 R16C 16 106/104T 10.5 690 221 6.00-6.5-7.00 F E 72 dB
215/60 R16C 16 103/101T 10.5 664 217 6.00-6.5-7.00 F E 72 dB
225/75 R16C 16 121/120Q 11.6 744 223 6.00-6-7.00 E E 72 dB
225/75 R16C 16 118/116R 11.5 743 228 6.00-6-7.00 F E 72 dB
225/65 R16C 16 112/110R 10.5 703 228 6.00-6.5-7.00 F E 72 dB
225/60 R16C 16 101/99T 10.5 676 225 6.50-6.5-7.50 F E 72 dB
235/65 R16C 16 115/113R 10.5 715 240 6.50-7-7.50 F E 74 dB
215/60 R17C 17 104/102T 10.5 691 215 6.00-6.5-7.00 F E 72 dB
